Hayes BAC-MH-0203.518

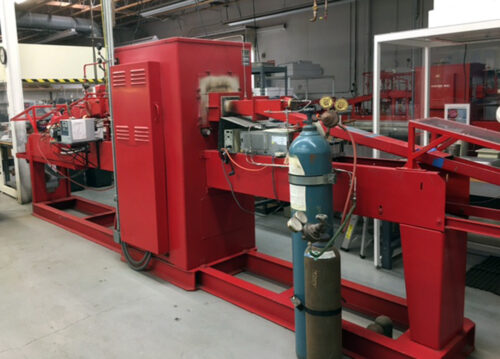

Humpback Conveyor Furnace

---

• 2” clearance over the belt x 18” long heating chamber (one zone)
• Belt width, 3.5”, St St spirals/601 Inconel rods
• 601 Inconel muffle
• All stainless steel cooling section, three water jacketed sections totaling 90” with auto temp. control
• Silicon carbide heating elements
• Hydrogen processing atmosphere with helium safety system, with flow control meters

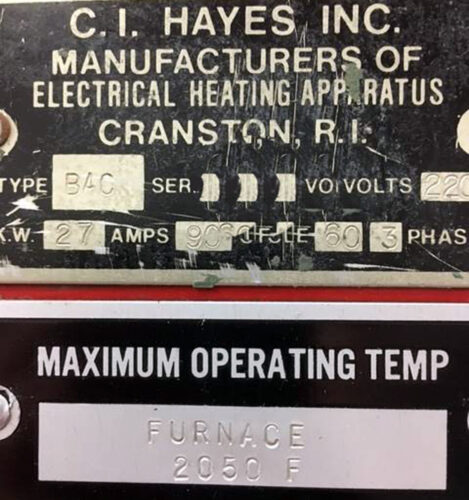

• 27 Kw, 208-220/3/60
• 75” H x 40” W x 21’-8” long approximately
• Temp: 2100 deg. *F*
• Variable speed drive, 1-10”/min

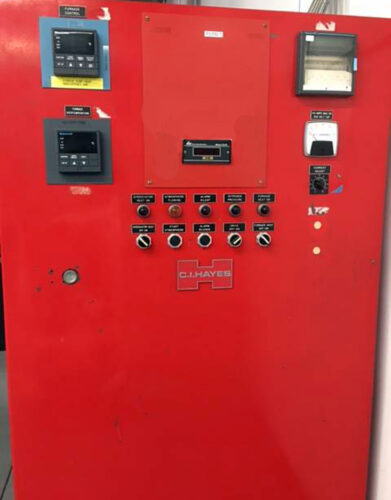

• Honeywell controller, including over-temp protection

---

---

---

---

---
