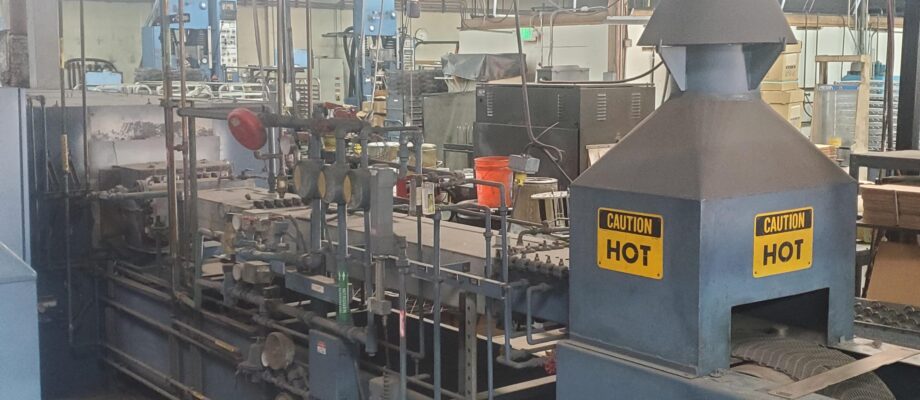

C.I. Hayes BAC-M-041284-60PHM Conveyor Belt Sintering Furnace Specifications: Work Opening Over The Belt: 4” Belt Width: 12”, 314 Material Preheat: 60” Long With Metallic muffle, MOT 1600 deg *F* Elements: 18 Silicon Carbide Power: 54 kW – 460/3/60 Control: 3 Zones, Type K Thermocouples, Overtemp 1 Zone Type K Thermocouple. Atmosphere: DA & N2 With NPS Purge System High Heat: 84” Long With Metallic Muffle, MOT: 2100 deg *F* Elements: 24 Silicon Carbide Power: 57 kW – 460/3/60 Control: 3 Zones, Type S Thermocouples, Overtemp 1 Zone, Type S Thermocouple Atmosphere: DA & N2 With NPS Purge System Dimensions: 66-3/4” … Continue reading C.I. Hayes Model BAC-M-041284-60PHM Conveyor Belt Sintering Furnace
